When homeowners think of upgrading their solar PV setup, battery storage often gets all the attention. However, there is a lower-cost, highly effective device that can turn your excess summer solar generation into hot water: a smart solar immersion diverter.

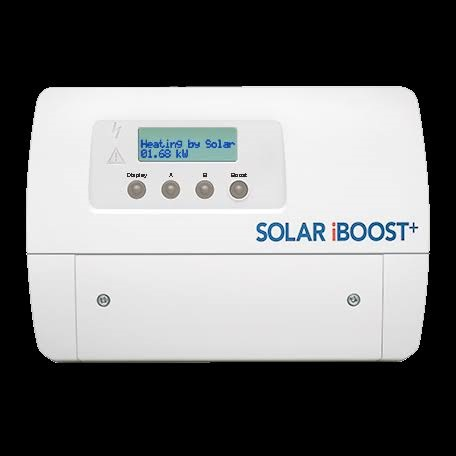

Popular models like the Marlec Solar iBoost+ continuously monitor your home’s power consumption and automatically route surplus solar generation straight into your hot water cylinder. The result? Free hot water throughout spring, summer, and autumn, allowing you to turn off your gas or oil boiler for months at a time.
Here is how smart solar diverters work, how much they can save you, and why they offer an ideal alternative to an Air Source Heat Pump (ASHP) for certain properties.
How Does a Solar Energy Diverter Work?

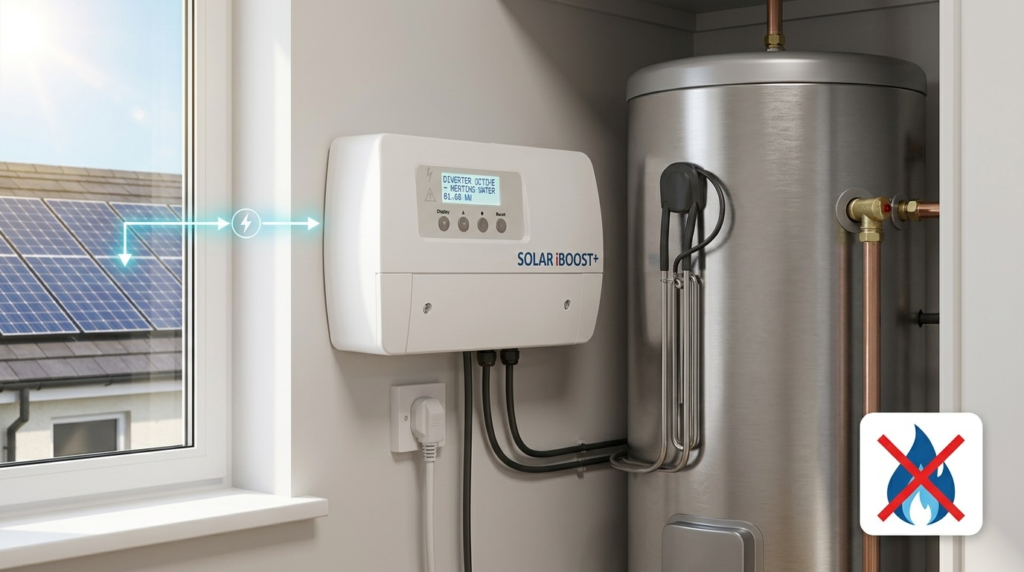

A solar diverter sits between your solar panels and your hot water cylinder’s immersion heater.
- Monitors Power Flow: A small wireless sensor (CT clamp) attached near your electricity meter measures whether your home is importing power from the grid or exporting excess solar generation.
- Detects Surplus Energy: The moment your panels generate more power than your home is using (for instance, when your solar array generates 2kW but appliances are using only 500W), the diverter steps in.
- Proportional Diversion: Rather than letting that 1.5kW export back to the grid for a low Smart Export Guarantee (SEG) rate, the diverter modulates the exact amount of excess power directly to your immersion heater element.
Because the power output modulates continuously in real time, if someone turns on a kettle indoors, the iBoost instantly dials down the diversion to ensure you never accidentally pull expensive electricity from the grid.
Slashing Gas Bills: All-Year Hot Water Impact
Heating water using a standard gas boiler or oil system during summer is inefficient. Boilers must fire up from cold just to top up a hot water tank or supply showers.
- Spring through Autumn (April–October): A modest 3kW–5kW solar array will typically generate enough surplus electricity to provide 100% of a family’s daily hot water requirements. Your gas or oil boiler can be switched off or put into summer standby mode entirely.
- Winter Months (November–February): While shorter daylight hours mean less surplus generation, a diverter will still top up the cylinder during sunny winter spells, reducing the work your boiler has to do.
- Financial Payback: Costing between £450 and £600 fully installed, a quality diverter like the Marlec Solar iBoost+ usually pays for itself in gas or oil savings within 2 to 4 years.

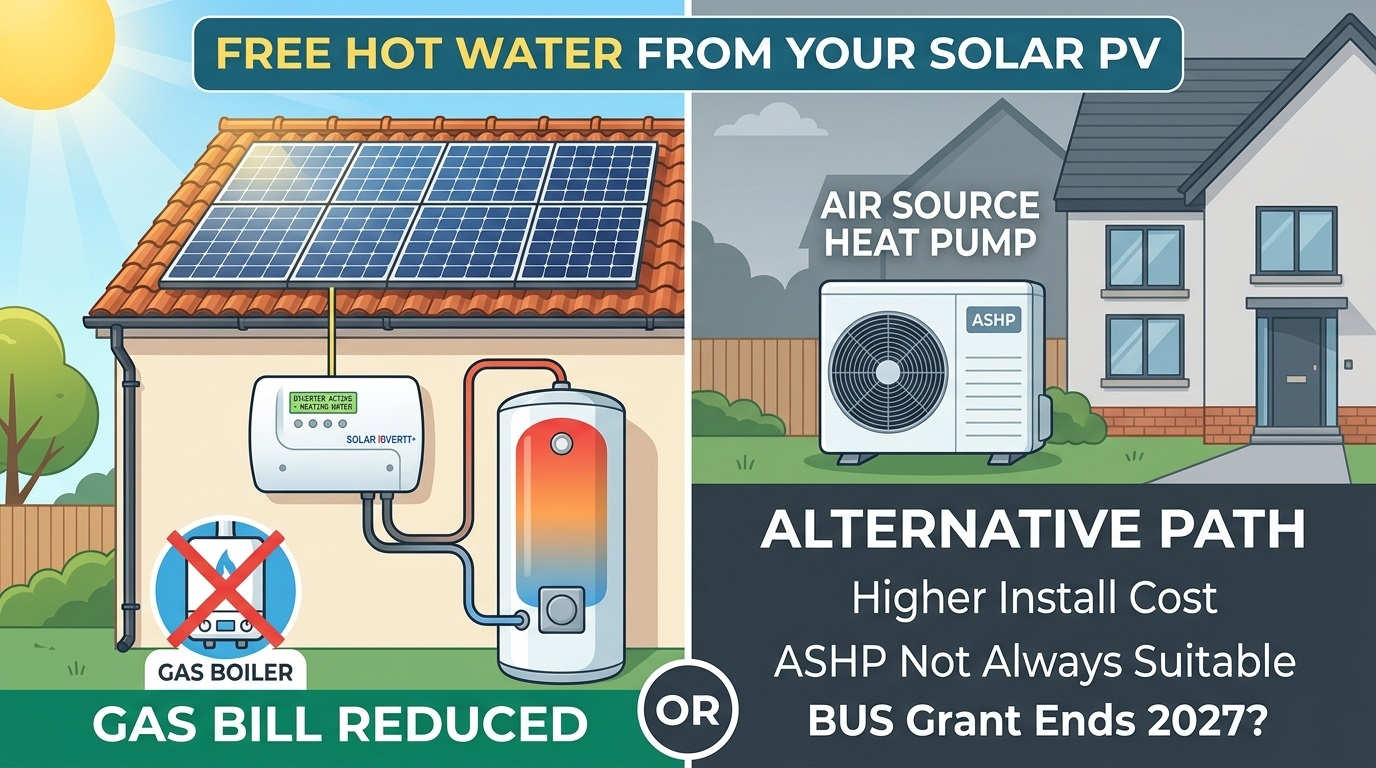

A Practical Alternative to Air Source Heat Pumps
Air Source Heat Pumps (ASHPs) are a great low-carbon technology, but they are not the right fit for every home or budget right now. A solar diverter combined with a modern boiler provides an alternative route to decarbonizing your hot water:
| Air Source Heat Pump Upgrade | Solar iBoost / Diverter Setup |
|---|---|
| • Ideal for EPC Band A–C properties | • Suitable for uninsulated or drafty homes |
| • Requires modern/upsized radiators | • Uses existing pipework & immersion cylinder |
| • Out-of-pocket budget: £10,000–£14,000 | • Out-of-pocket budget: £450–£600 installed |
| • Replaces boiler completely (BUS Grant dependent) | • Complements modern gas/oil boilers under warranty |
1. Homes Unsuitable for Heat Pumps
Older, drafty properties, stone cottages, or homes with small radiator networks often require major, disruptive insulation and radiator upgrades before an ASHP can operate efficiently. A solar diverter requires zero structural or radiator changes—it simply taps into your existing hot water cylinder.
2. Properties with Newer Boilers
If you installed a high-efficiency gas boiler or system boiler within the last few years, replacing a perfectly functional £3,000 appliance makes little financial sense. Installing a solar diverter allows you to extend your boiler’s working life by turning it off completely during the summer months.
3. Prohibitive Upfront Costs & Grant Deadlines
While the government’s Boiler Upgrade Scheme (BUS) offers a £7,500 grant toward heat pump retrofits, the total installed cost of an ASHP system can still exceed £10,000 to £14,000+ out of pocket. Furthermore, with uncertainty around grant scheme extensions beyond April 2027, a £450 – £600 solar diverter delivers immediate, high-ROI energy savings without relying on government subsidy approvals.
Who is a Solar Diverter For?
| Suitable For (Ideal Candidates) | Not Suitable For |
| Homes with a Hot Water Cylinder: Traditional vented or unvented cylinders equipped with a standard 3kW immersion heater element. | Combi Boiler Systems: Homes that heat water instantly on demand and lack a hot water storage tank. |
Solar PV Owners: Properties with solar PV installed (with or without a battery system). | Properties Without Immersion Elements: Homes with no electric water heating backup element fitted. |
| Gas, Oil, or LPG Households: Anyone looking to cut fossil-fuel heating bills during warmer months. | Heavy Battery Storage Setup: If you have a massive battery that captures 100% of your excess generation, a diverter becomes secondary. |
The Verdict: The Most Cost-Effective Solar Upgrade
If your home has a hot water cylinder and you either have, or are considering solar PV panels, installing a smart diverter like the Marlec Solar iBoost+ is one of the highest-yielding micro-investments you can make. It eliminates your summer gas bill, reduces boiler wear, and ensures your renewable energy stays inside your home rather than bleeding onto the grid.
